Canned Food Cartoning Machine

Canned Food Cartoning Machine

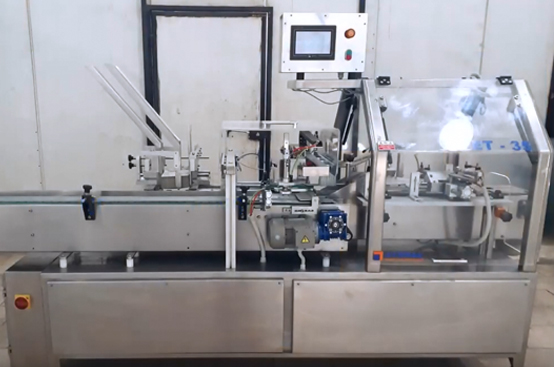

This machine is ideal for flexible operations that require manual or mechanical intermittent product infeed at relatively slow rates. It can process up to 30 packages per minute depending on the type and size of the box and product to be packed. It offers optimum customized solutions to customer needs in a wide range of industries, especially in the food sector.

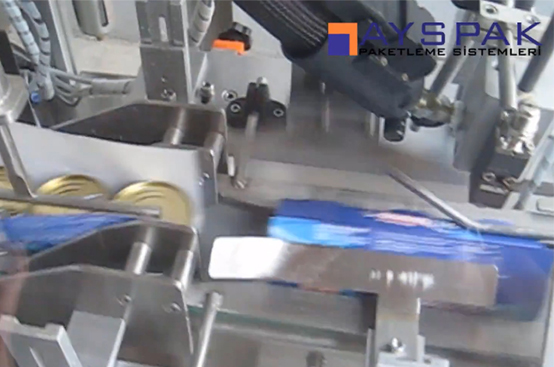

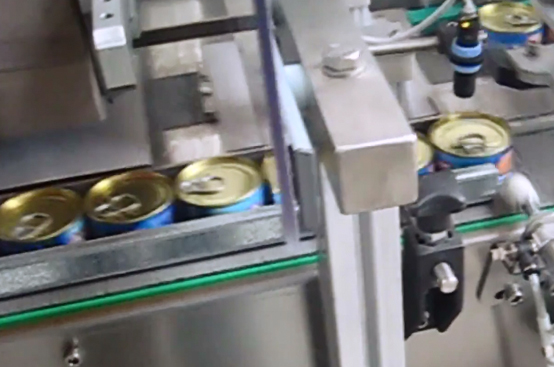

To briefly describe the functions of the machine, the flattened carton stacks are placed into the magazine of the machine and the products to be packaged on the product conveyor by a person manually and then the machine is started. The machine takes one folded carton from the  magazine and erects it to prepare for filling. At the same time the products are automatically grouped, positioned on the feeding line and then pushed onto the carton from its open end. At the  oncoming  stations, the carton is wrapped and the flaps are sealed automatically, thus the packaging is completed.

It is a compact machine that complies with international standards and features energy efficient, ergonomic, robust and well-integrated compatible mechanical units, quality mechanical, electrical and electronic components infrastructure, easy access for maintenance and spare parts replacement, operator comfort and preventive safety measures along with a competitive price. In addition to its basic technical specifications, it also allows integration of optional features and even third-party equipment for a highly customised packaging lines.

Operating
Method
Recommended
Sectors
General
Features
Technical
Specifications
Safety
Features
Optional
Features
Manufactured
for

OPERATING METHOD

  • Automatically or manually controlled intermittent motion

RECOMMENDED SECTORS

  • Food

GENERAL FEATURES

  • • Intermittent motion system
    • Packing rate, up to 25 boxes per minute (varies depending on packing material, product to be packed and feeding rate)
    • Ergonomic product feed and grouping system to facilitate easy loading
    • Adjustable magazine for different carton blanks
    • Automatic carton picking-feeding-forming system
    • Automatic rejection of non-conforming products / cartons
    • Synchronized product and packing material lines
    • Wraparound cartoning/casing system
    • Integrated hot melt sealing, adhesive tape sealing or tuck closure systems
    • Flexible and adjustable glue application system (thickness, length, spray distance and number of spots)
    • 7’’ color touch-screen PLC control panel
    • User-friendly, ergonomic English language PLC interface
    • Easy-to-understand error and fault display
    • Information screen to display daily output, total output and machine working hours
    • Electrical wiring  diagram
    • Fully accessible units for easy machine settings and maintenance
    • Machine operation at slow or jog modes available
    • Manual carton format changeover
    • Mechanical counters allowing fast changeovers
    • Manual lever mechanisms for fast changeovers
    • Conveyor-mounted adjustable locaters for precise positioning of empty cartons
    • Stainless steel machine frames
    • Machine user guide

TECHNICAL SPECIFICATIONS

  • TECHNICAL SPECIFICATIONS

    Carton size (mm)



    Width

    Length

    Height

    Max

    140

    300

    175

    Min

    50

    90

    35




    MACHINE SPECIFICATIONS


    Machine Dimensions (mm)



    Width

    Length

    Height

    1280

    3600

    1620

    Packaging Speed (subject to packing material, product and feed rate)


    Min – Max


    25 - 30
    pcs / min

    Machine Weight

    Approx.

    Power supply

    380 V, 50 Hz

    Air supply

    6 bar

    Air consumption

    Approx. 100 l/min

    Control system

    PLC Touch Screen Control

    Warranty

    2 years

SAFETY FEATURES

  • SAFETY AND WARNING SYSTEMS

    Machine Status Indicators

    Red and green warning lights, audible and visual warning system indicating machine start, stop or malfunction

    Start-up Safety System

    3 seconds delay at the start-up of the machine, audible and visual warning systems during this period

    Magazine Warning System

    Audible and visual warning system when the material decreases below certain level in the blank magazine

    No-product and no-case detection

    Detection system that activates in case of no-box or no-product during filling and discards the product or the box

    Operator Safety System

    Mechanical, as well as software-embedded, preventive safety systems/guards to protect personnel from danger.

    Machine Breakdown Detection System

    In case of breakdown, the system stops the machine, displays warning message on the control panel and activates audible and flashlight warning devices.

    Air Pressure Warning System

    Audible and visual warning system indicating low air pressure

OPTIONAL FEATURES

  • • Date Coding System

    • Labelling System
    • Product Feed System
    • Product Grouping System
    • Additional Brochure/Document Placing System
    • Control Panel Language Option
    • Industry 4.0 Integration
